Send Inquirymicroprocessor uv-vis double beam spectrophotometer
Price 329000 INR/ Unit
MOQ : 1 Unit
microprocessor uv-vis double beam spectrophotometer Specification
- Control Type
- MANUAL
- Features
- Double beam optical system provides high accuracy and stability Microprocessor controlled automatic operation and data processing Wide wavelength range (1901100 nm) covers UV and visible regions High resolution (1 nm bandwidth) precise measurements Dual light source Deuterium (UV) and Tungsten (Visible) Multiple modes Absorbance, Transmittance, Concentration, Kinetics Graphic LCD display easy viewing of data and spectra Multi-cell holder allows multiple samples at once USB/Printer interface easy data transfer and printout Low noise & high photometric accuracy reliable results
- Power Supply
- AC 220V
- Shape
- RECTANGLE
- Display Type
- NON TOUCH SCREEN
- Type
- Other
- Dimension (L*W*H)
- 590 460 220 mm Millimeter (mm)
- Size
- 590 X 460 X 220 mm
- Height
- 220 Millimeter (mm)
- Product Type
- SPECTROPHOTOMETER
- Weight
- 25 Kilograms (kg)
- Equipment Type
- SPECTROPHOTOMETER
- Color
- WHITE
- Width
- 460 Millimeter (mm)
- Length
- 590 Millimeter (mm)
- Power
- AC 220V Volt (v)
- Voltage
- AC 220V Volt (v)
- Application
- Pharmaceutical analysis Used for drug formulation, quality control, and determination of active ingredients. Biochemical & clinical analysis Measurement of DNA, RNA, proteins, enzymes, and blood components. Environmental testing Analysis of water and wastewater for pollutants, nitrates, phosphates, etc. Food & beverage industry Checking food quality, additives, color, and contamination. Chemical analysis Quantitative determination of compounds and reaction monitoring. Academic & research labs Widely used for experiments, spectroscopy studies, and student training. Industrial quality control Ensures consistency of products in chemical and manufacturing industries.
- Warranty
- 1 YEAR
microprocessor uv-vis double beam spectrophotometer Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 5 Units Per Week
- Delivery Time
- 1 Months
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
About microprocessor uv-vis double beam spectrophotometer

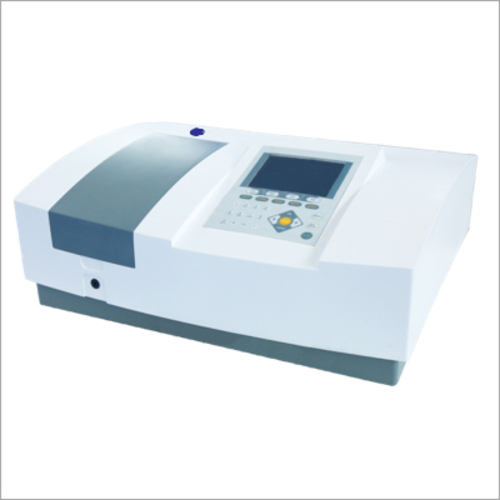

The Microprocessor UVVIS Double Beam Spectrophotometer LI2802 R is a highprecision analytical instrument used for measuring the absorbance and transmittance of samples in the ultraviolet and visible regions It operates over a wavelength range of about 1901100 nm and uses a double beam optical system that splits light into sample and reference beams ensuring greater accuracy and stability by compensating for fluctuations in light intensity The instrument is controlled by a builtin microprocessor which enables automatic wavelength selection data processing and multiple measurement modes such as absorbance transmittance and concentration It typically features a deuterium lamp for UV and a tungsten lamp for visible light a silicon photodiode detector and a multicell sample holder With high wavelength and photometric accuracy along with options like temperature control and data output interfaces it is widely used in pharmaceutical analysis environmental testing and research laboratories
Advanced Double Beam Technology
The spectrophotometer employs a double beam optical system, which ensures highly accurate and stable measurements by compensating for fluctuations in light source intensity. This system is especially beneficial in environments where consistent data integrity is critical. The microprocessor-controlled operations further automate data processing, ensuring reliable results for all users.
Wide Applicability Across Industries
Designed for versatility, this spectrophotometer is widely used in pharmaceutical, clinical, environmental, and food industries. Its ability to analyze DNA, RNA, proteins, water pollutants, food additives, and chemicals makes it indispensable for both quality assurance and research. The multi-cell holder enables analysis of several samples simultaneously, increasing throughput.
User-Friendly Features and Robust Construction
Measuring 590 x 460 x 220 mm and made in India, this equipment is built for durability and ease of use. Manual controls and a graphic LCD display support straightforward operation, while USB/printer interfaces facilitate easy data export. With low noise, high photometric accuracy, and a one-year warranty, it offers reliable, long-term performance.
FAQ's of microprocessor uv-vis double beam spectrophotometer:
Q: How does the double beam system enhance the accuracy of this spectrophotometer?
A: The double beam system uses two separate light paths-sample and reference-to automatically compensate for variations in light intensity, resulting in more stable and precise measurements, even during extended analysis.Q: What types of applications is this spectrophotometer suited for?
A: This instrument is ideal for pharmaceutical analysis, environmental testing, food and beverage quality checks, biochemical assays, academic studies, and industrial quality control, covering a wide array of analytical requirements.Q: When should I use the UV versus the visible light source?
A: Use the deuterium lamp (UV) for measurements in the 190-400 nm range, such as nucleic acid and protein quantification, and the tungsten lamp (Visible) for 400-1100 nm, suitable for colorimetric and chemical compound analysis.Q: Where can I export or print my data from the device?
A: You can easily transfer or print analytical results using the built-in USB and printer interface, allowing seamless data export for record-keeping or further processing.Q: What is the process for conducting routine sample analysis?
A: Prepare your sample, place it in the cell holder, select the appropriate measurement mode (Absorbance, Transmittance, Concentration, or Kinetics), and the instrument will automatically process and display the results via the LCD screen.Q: How does the multi-cell holder benefit laboratory workflows?
A: The multi-cell holder allows multiple samples to be measured in succession, saving time and improving efficiency, especially when handling high-throughput analysis or comparative studies.Q: What warranty and support are provided with this spectrophotometer?
A: The equipment comes with a one-year warranty, ensuring support for service-related issues and guaranteeing product reliability.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in SPECTROPHOTOMETER Category

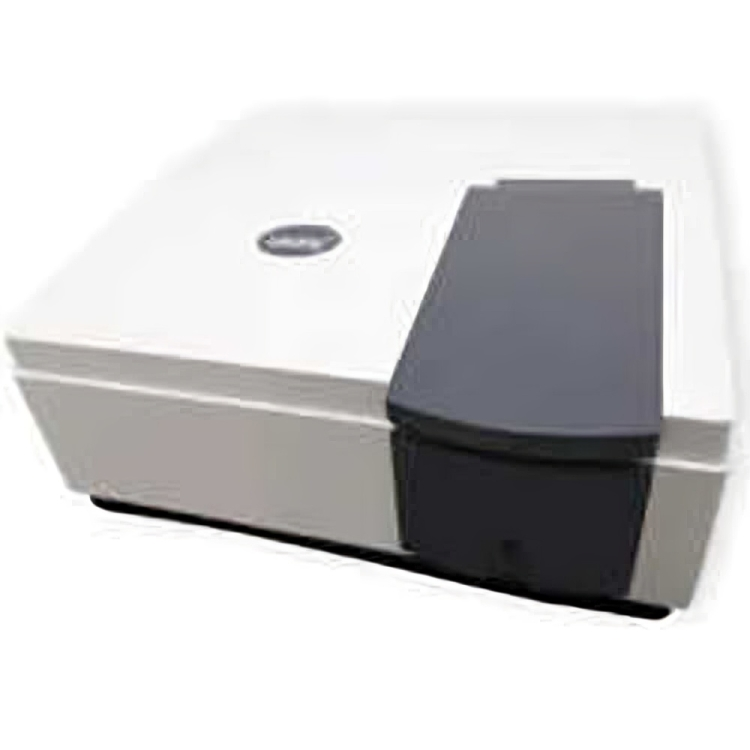

Double Beam UV-VIS Spectrophotometer with tab
Price 265000 INR / Unit
Minimum Order Quantity : 1 Unit
Power : AC 230 V Volt (v)
Length : 545 Millimeter (mm)
Weight : 18 Kilograms (kg)
Application : Chemical Analysis: Used to determine the concentration of substances in solutions using the BeerLambert law. Pharmaceutical Industry: Applied in drug formulation, purity testing, and quality control of medicines. Biochemistry & Clinical Labs: Helps in estimation of DNA, RNA, proteins, and enzymes in biological samples. Environmental Testing: Used for analysis of water and wastewater, including detection of pollutants and contaminants. Food & Beverage Industry: Determines additives, preservatives, and quality parameters in food products. Industrial Quality Control: Ensures consistency and quality of raw materials and finished products.
Double Beam Spectrophotometer Xenon Lamp Model LI - 3001
Price 649000 INR / Unit
Minimum Order Quantity : 1 Unit
Power : AC 220V/50Hz or AC 110V/60Hz Volt (v)
Length : 660 mm Millimeter (mm)
Weight : 27kg Kilograms (kg)
Application : Pharmaceuticals, Biotechnology, Environmental Monitoring, DNA/Protein Research, Kinetics, and Quality Control
Double Beam UV-VIS Spectrophotometer LI-2904
Price 449000 INR / Unit
Minimum Order Quantity : 1 Unit
Power : AC 220V / 50Hz or AC 110V / 60Hz
Length : 730mm Millimeter (mm)
Weight : 42.5kg Kilograms (kg)
Application : Pharmaceutical analysis, biochemical research, environmental monitoring, food quality testing, chemical kinetics,DNA/RNA quantification, clinical diagnostics, water purity checks, metallurgy, and petrochemical testing.

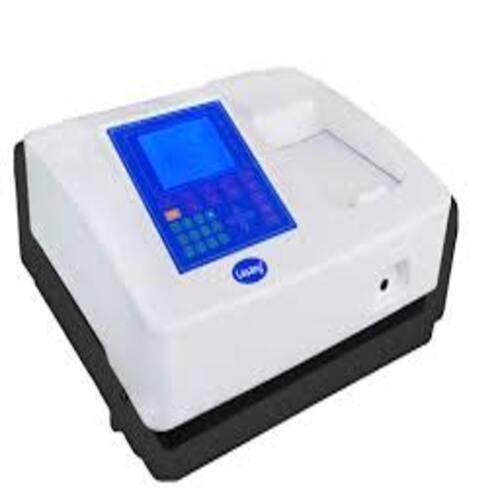

Microprocessor UV-Vis Double Beam Spectrophotometer with software
Price 279000 INR / Unit
Minimum Order Quantity : 1 Unit
Power : AC 90250 V, 50/60 Hz Volt (v)
Length : 545 Millimeter (mm)
Weight : 18 Kilograms (kg)
Application : Pharmaceutical analysis: Determination of drug concentration, purity testing, and quality control of medicines. Biochemistry & clinical labs: Analysis of proteins, enzymes, DNA, and blood components. Environmental testing: Monitoring water and air quality by detecting pollutants and contaminants. Food & beverage industry: Checking food quality, additives, and safety standards. Chemical laboratories: Quantitative analysis of compounds and reaction monitoring.
